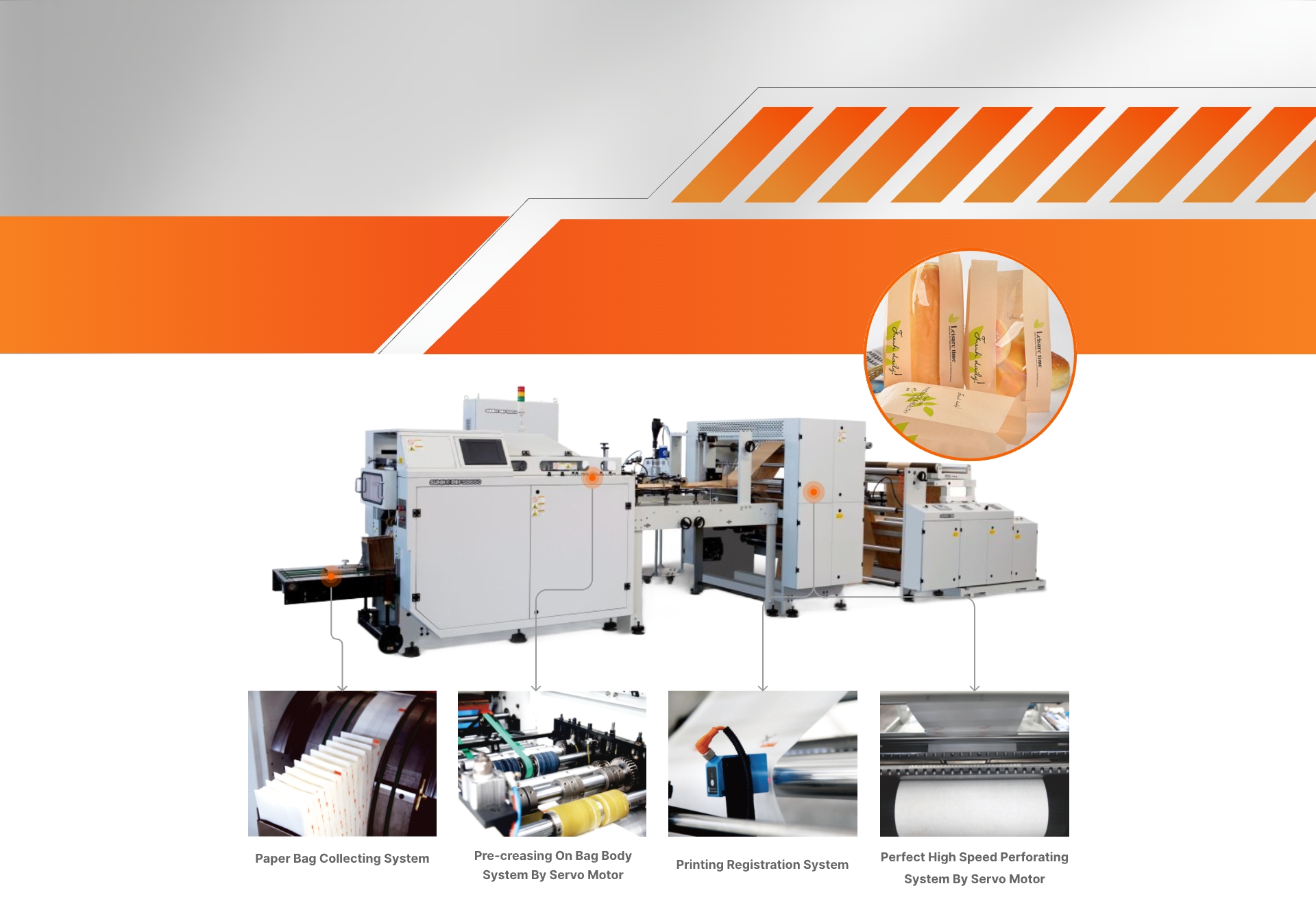

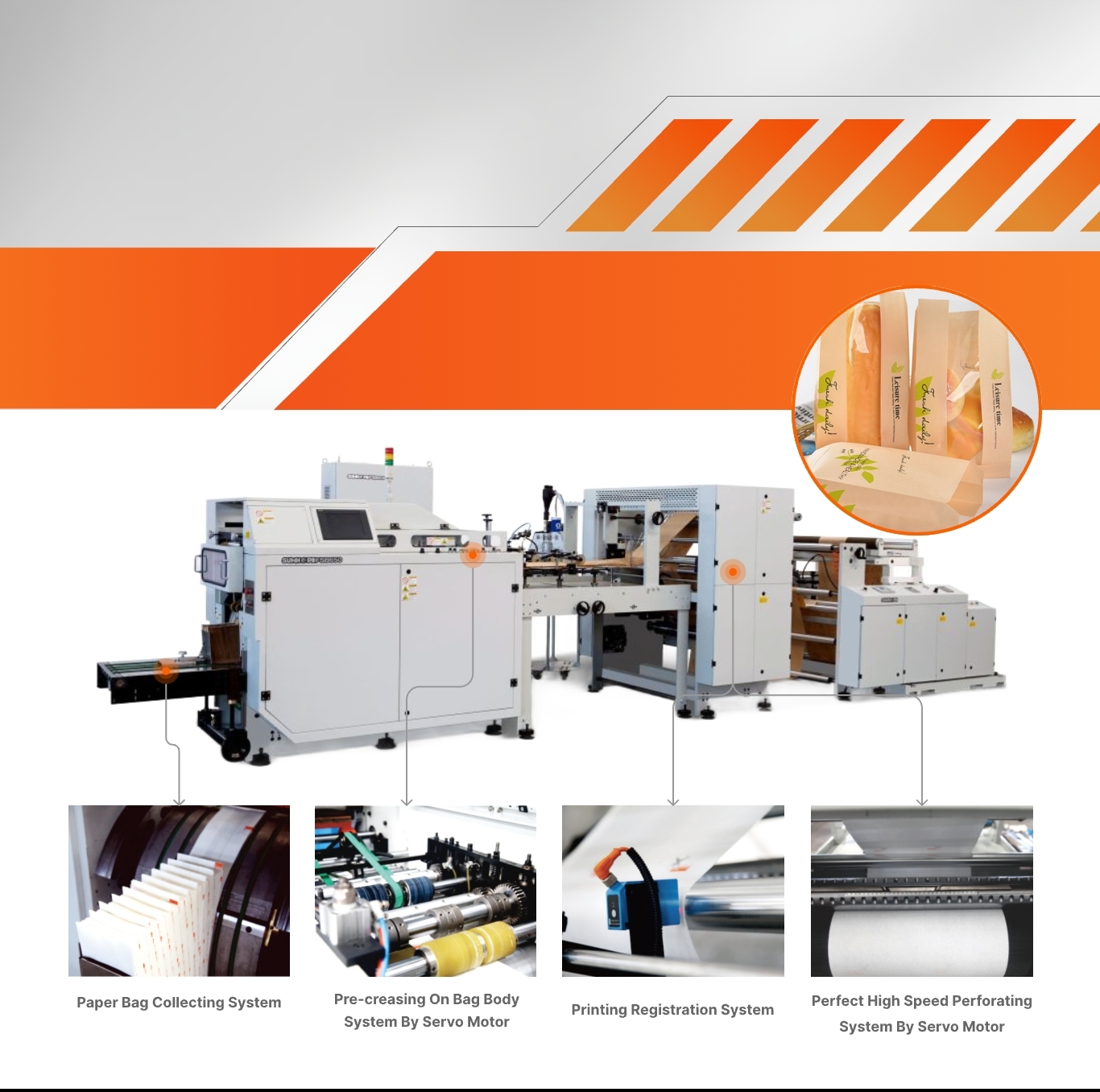

FSB650 Full-SERVO High Speed Flat & Satchel Paper Bag Machine Series
| Technical Info | FSB400 | FSB600 | FSB1600 | |
|---|---|---|---|---|

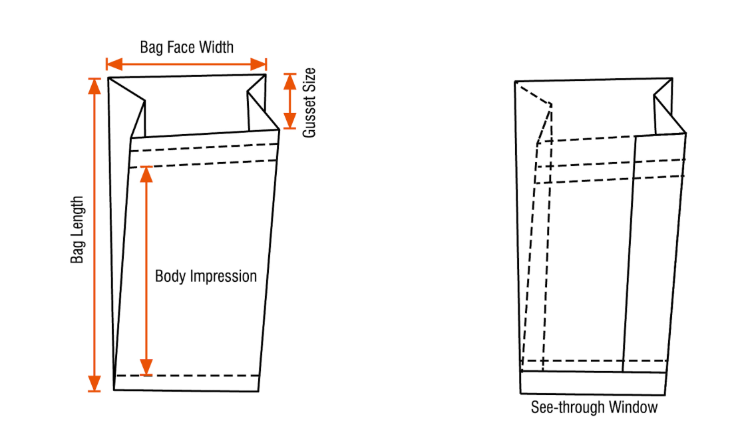

| Single Stream | Face Width(w/o Gusset)(mm) | 60-510 | 80-320 | 39-368 |
| Face Width(with Gusset)mm) | 60-510 | / | 51-317 | |
| Total Gusset (mm) | 140 | / | 13-127 | |
| Dual Stream | Face Width (w/o Gusset)((mm） | 60-230 | / | 39-177 |
| Face Width (with Gusset)(mm) | 60-200 | / | 51-146 | |
| Total Gusset(mm) | 20-105 | / | 13-76 | |
| Bag Length(mm) | 85-380 | 140-645 | / | |
| Gusset Size(mm) | 20-140 | 25-100 | / | |
| Cutoff Length Range (mm) | 105-400 | 145-650 | 102-292 | |
| Maximum Web Width(mm) | 1500 | 910 | 762 | |
| Maximum Roll Diameter(mm) | Φ1500 | Φ1500 | Φ1200 | |
| Paper Substrate Range(gsm) | 30-90 | 30-70 | 30-65 | |
| Plastic Window Width(mm) | / | 50-200 | / | |
| Minimum Seam Overlay(mm) | 20 | 20 | 16 | |
| Minimum Former Flap = Seam Overlay + Seam Offset(mm) | 25 | 25 | 25 | |
| Max. Speed | One Stream (bags/min) | 1000 | 550 | 800 |
| Double Stream (bags/min) | 2000 | / | 1600 | |
| Total Power (kw) | 52 | 19.65 | 19.65 | |
| Weight (kg) | 5500 | 5500 | 4500 | |
| Machine Size((LxWxH)m) | 8*2.6*2.1 | 8.5x3x1.96 | 7.5x3x1.96 | |
| Options Unit | FSB400 | FSB600 | FSB1600 | |
| Window Device | yes | yes | yes | |
| DL02 Two Ply Unit | yes | yes | / | |
| 1-4 Colors Flexo Printer Unit | yes | yes | yes | |
| MH1150 Hole Making Unit | yes | yes | yes | |
