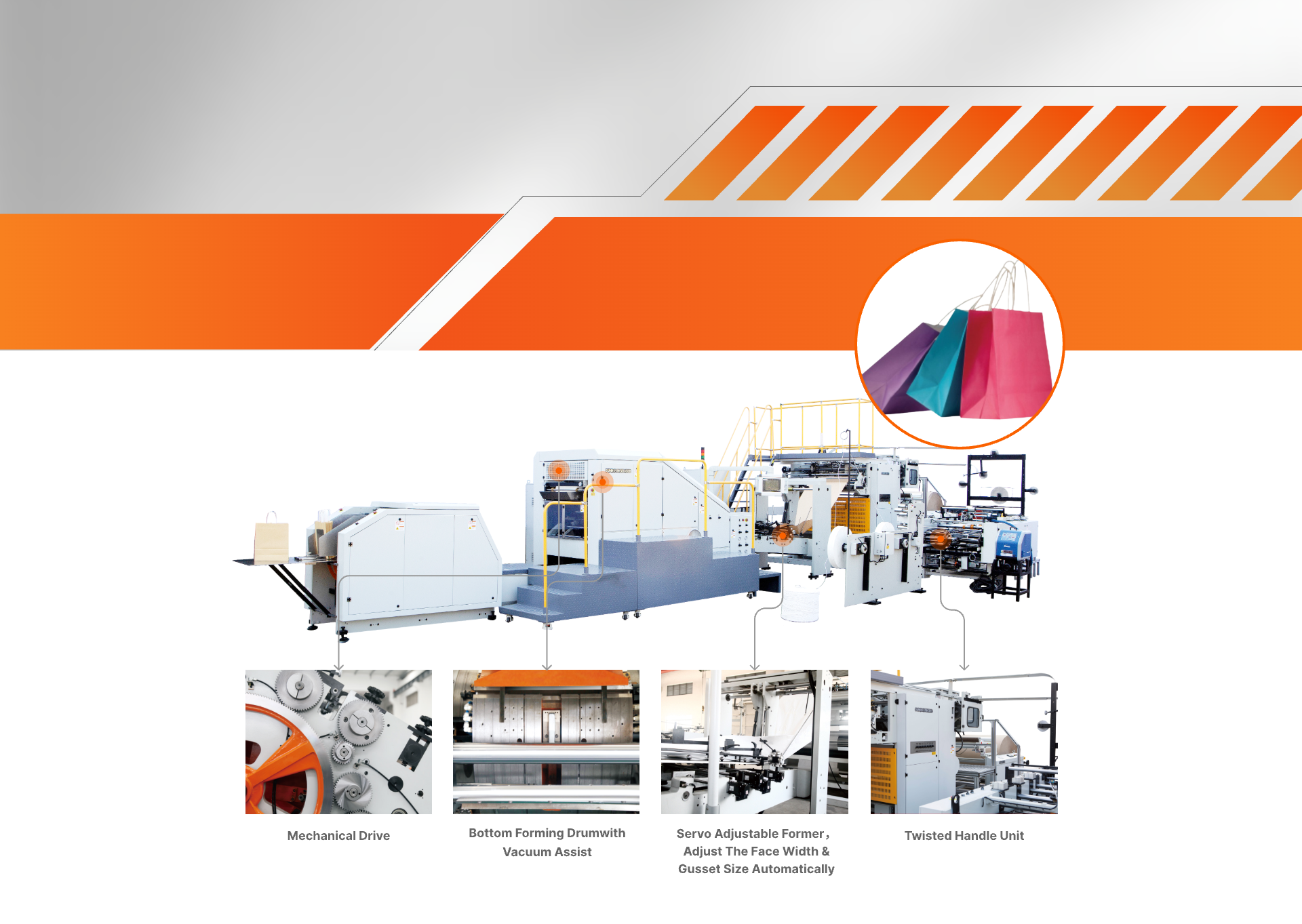

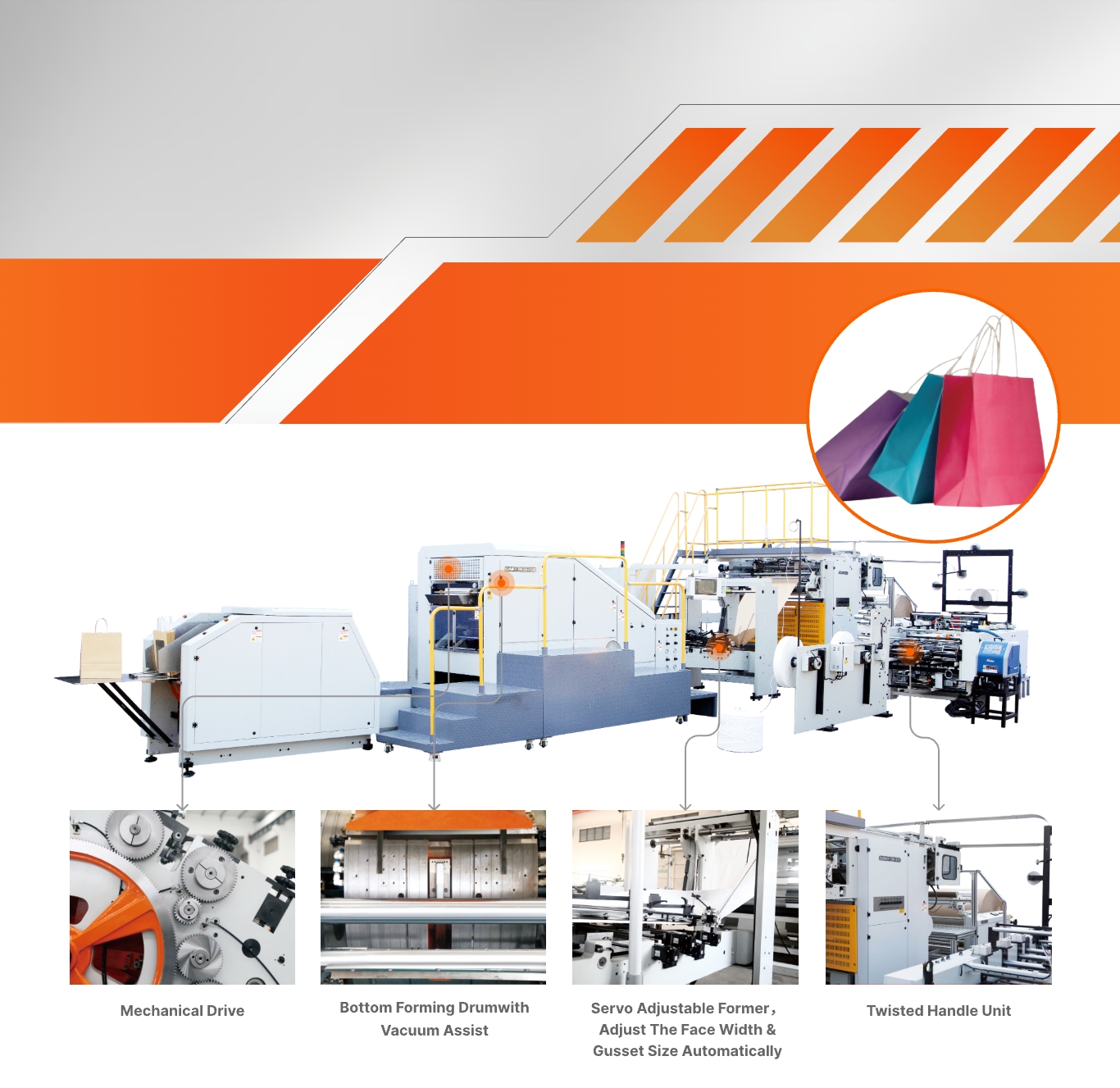

SBH330B/450B-HD Fully Automatic Roll Fed Twisted Handle Paper Bag Machine Series
| Technical Info | SBH150B-2HD | SBH330-2HD | SBH330-5HD | SBH330B-5HD | SBH330BPro-5HD | SBH450B-5HD | SBH450B-6HD | SBH450C-5HD | SBH450C-6HD |
|---|---|---|---|---|---|---|---|---|---|
| Paper Roll Width(mm) | 420-640 | 430-1050 | 550-1050 | 550-1050 | 570-1050 | 670-1310 | 670-1310 | 730-1310 | 730-1310 |
| 280-640(★) | 405-1050(★) | 405-1050(★) | 465-1050(★) | 505-1050(★) | 610-1310(★) | 610-1310(★) | 690-1310(★) | 690-1310(★) | |
| Paper Roll Dia.(mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 |
| Paper Thickness(gsm) | 40-150 | 45-180 | 45-180 | 50-180 | 50-180 | 70-180 | 70-180 | 70-180 | 80-180 |

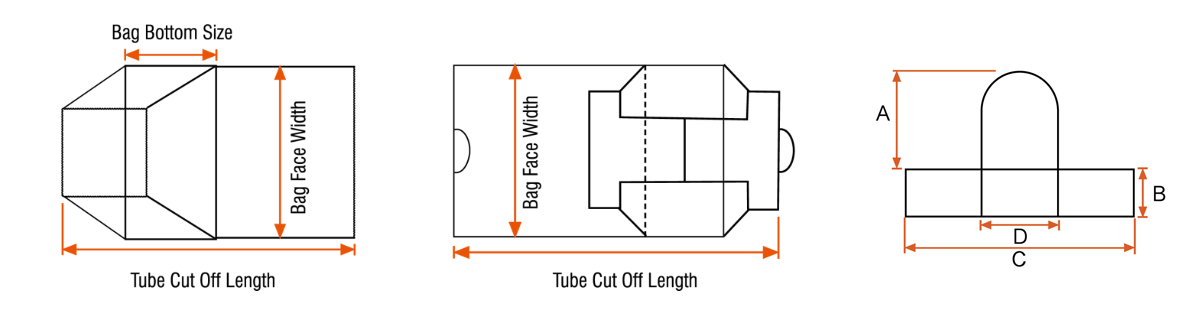

| Tube Cut Off Length (mm) | 191-320 | 280-430 | 280-430 | 280-430 | 280-430 | 380-640 | 380-640 | 380-640 | 380-640 |
| 191-430(★) | 280-540(★) | 280-540(★) | 280-540(★) | 280-540(★) | 368-762(★) | 368-762(★) | 368-762(★) | 368-762(★) | |
| Bag Face Width(mm) | 120-200 | 120-330 | 180-330 | 180-330 | 180-330 | 210-450 | 230-450 | 210-450 | 230-450 |
| 80-200(★) | 120-330(★) | 120-330(★) | 150-330(★) | 150-330(★) | 200-450(★) | 200-450(★) | 210-450(★) | 210-450(★) | |
| Bag Bottom Size(mm) | 50-100 | 70-150 | 70-150 | 70-180 | 90-180 | 90-205 | 90-205 | 120-260 | 120-260 |
| Handle Rope Height (A)(mm) | 102/115/125 | 102/115/125/140 | 102/115/125/140 | 102/115/125/140 | 102/115/125/140 | 102/115/125/140 | 115/125/140/150 | 102/115/125/140 | 115/125/140/150 |
| Handle Patching Length (C)(mm) | 95.25 | 95.25 | 152.4 | 152.4 | 152.4 | 152.4 | 190.5 | 152.4 | 190.5 |
| Handle Patching Width (B)(mm) | 40-50 | 40-50 | 40-50 | 40-50 | 40-50 | 40-50 | 40-50 | 40-50 | 40-50 |
| Rope Pitch (D)(mm) | 47.6 | 47.6 | 76 | 76 | 76 | 76 | 95 | 76 | 95 |
| Handle Rope Diameter (mm) | Φ3-4.5 | Φ3-4.5 | Φ3-4.5 | Φ3-4.5 | Φ3-4.5 | Φ3-4.5 | Φ3-4.5 | Φ3-4.5 | Φ3-4.5 |
| Handle Paper Patch Roll Diameter(mm) | Φ1200 | Φ1200 | Φ1200 | Φ1200 | Φ1200 | Φ1200 | Φ1200 | Φ1200 | Φ1200 |
| Handle Paper Patch Roll Width(mm) | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 |
| Handle Paper Patch Thickness(gsm) | 90-135 | 90-135 | 90-135 | 90-135 | 90-135 | 90-135 | 90-135 | 90-135 | 90-135 |
| Max. Speed (Is/min） | 150 | 150 | 150 | 150 | 150 | 120 | 120 | 120 | 120 |
| Total Power (kw) | 24.5 | 30.5 | 30.5 | 31.32 | 31.32 | 33.22 | 33.22 | 33.22 | 33.22 |
| Machine Weight (kg) | about 13000 | about 16000 | about 16000 | about 16000 | about 16000 | about 18000 | about 18000 | about 18000 | about 18000 |
| Machine Size((LxWxH)m) | 12x5.5x2.5 | 13.6x6x2.5 | 13.6x6x2.5 | 13.6x6x2.5 | 13.6x6x2.5 | 14.8x6x2.5 | 14.8x6x2.5 | 14.8x6x2.5 | 14.8x6x2.5 |
| Three Types Bottom Seal | in | in | in | in | in | in(Two) | in(Two) | in(Two) | in(Two) |
| Servo Lip Cut Device | in | in | in | in | in | w/o | w/o | w/o | w/o |
| 1-4 Colors FlexoPrinter Unit | in | in | in | in | in | in | in | in | in |
| Servo Patch Unit | in | in | in | in | in | in | in | in | in |
