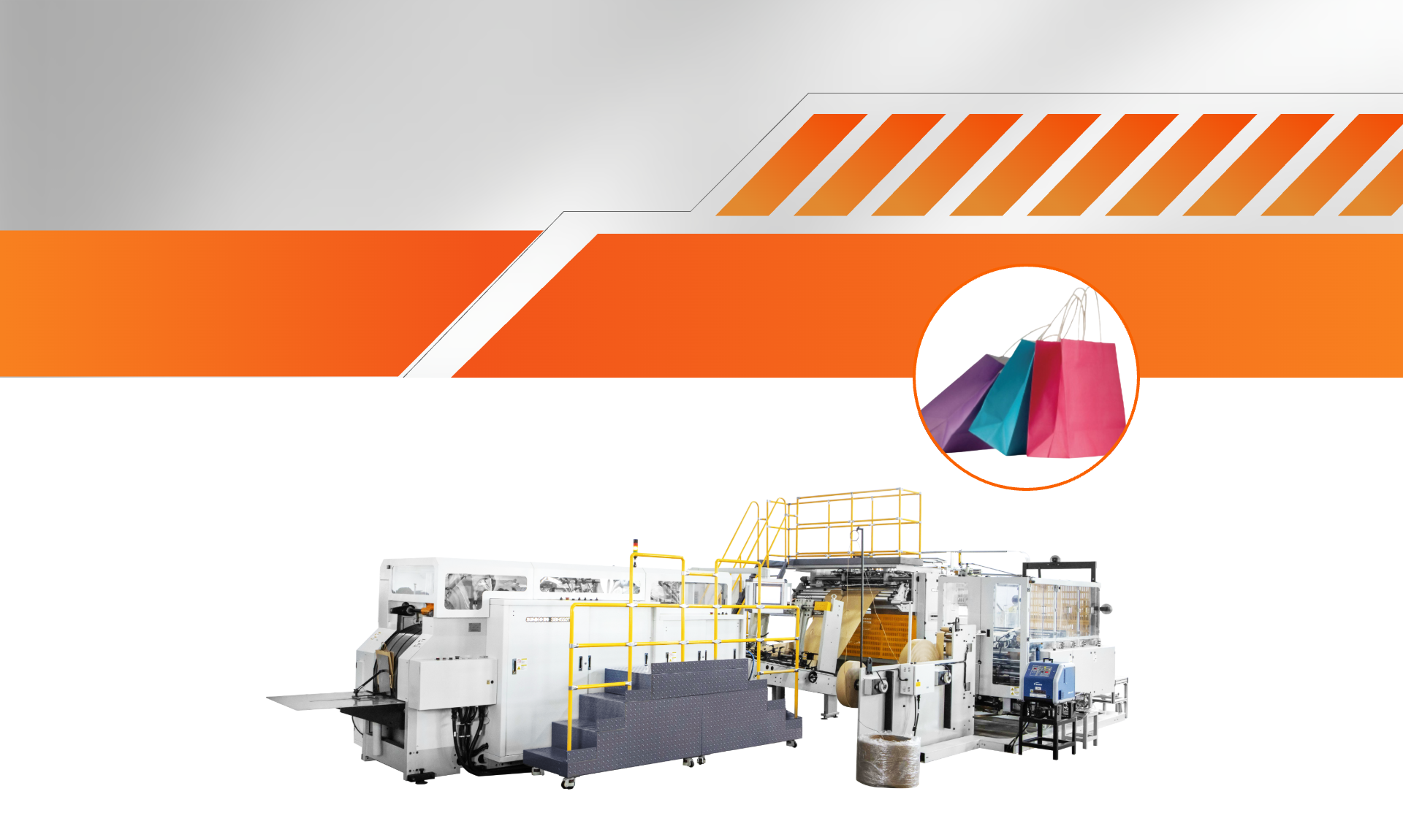

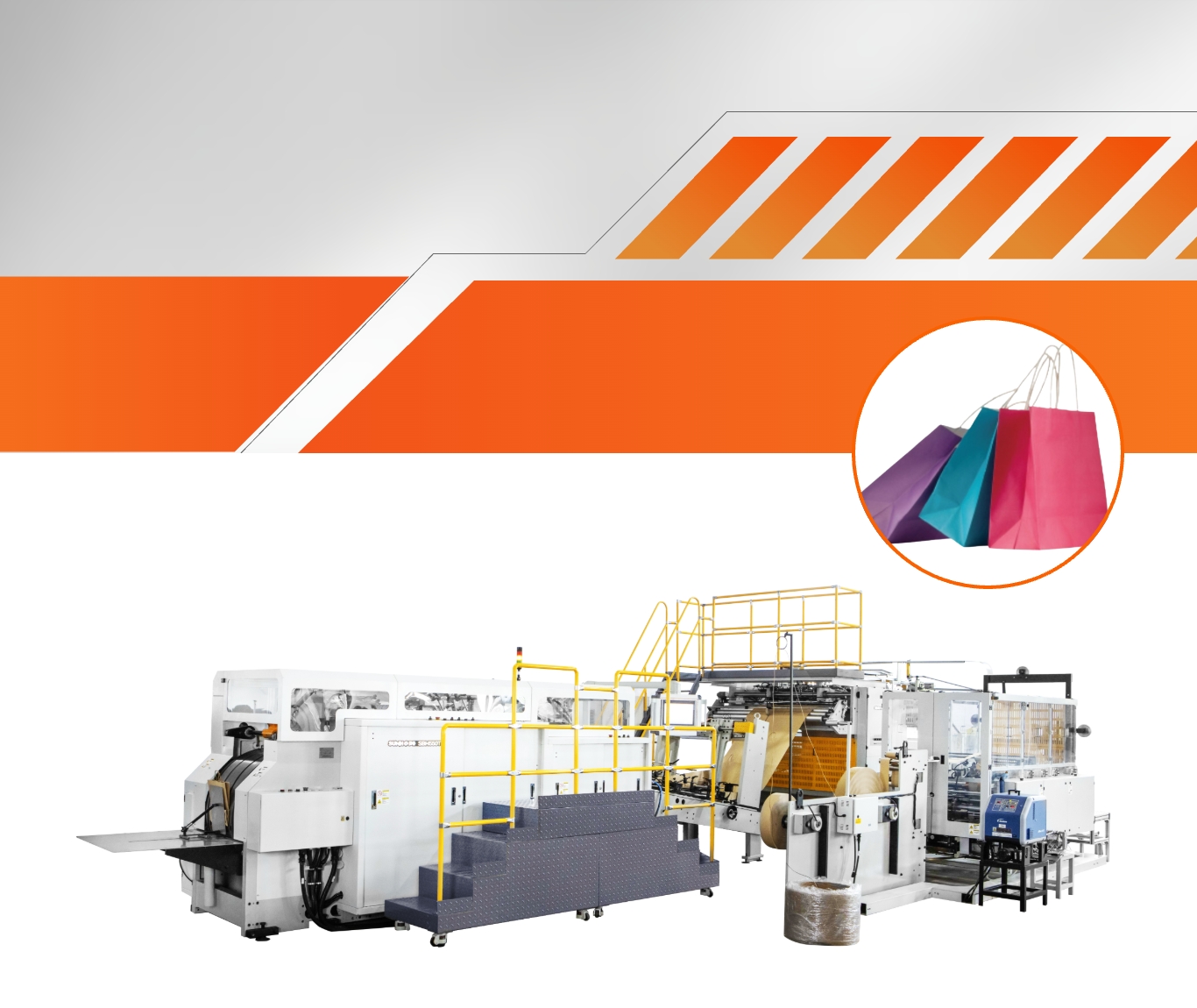

SBH550T/SBH550TB-6HD Fully Automatic Roll Fed Twisted Handle Paper Bag Machine Series
| Technical Info | SBH550T-6HD | SBH550TB-6HD |
|---|---|---|
| Paper Roll Width(mm) | 650-1510 630-1510(★) | 690-1510 670-1510(★) |
| Paper Roll Dia.(mm) | ≤1500 | ≤1500 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 |
| Paper Thickness(gsm) | 80-150 | 80-150 |

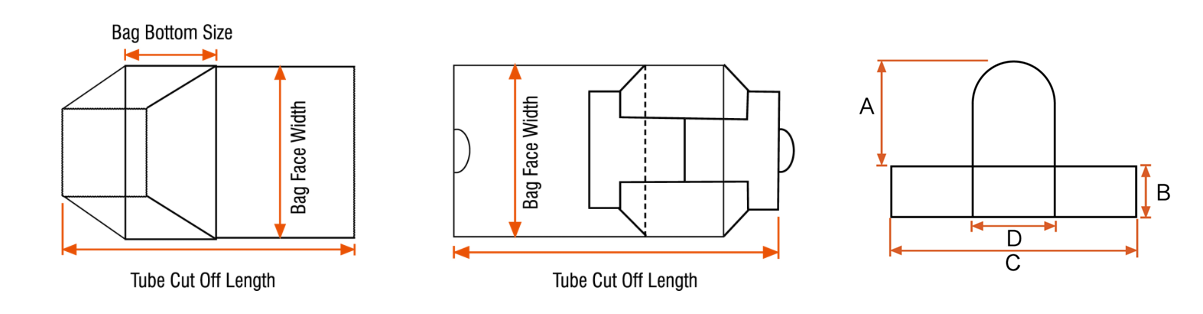

| Tube Cut Off Length (mm) | 360-650 360-770(★) | 360-650 360-770(★) |
| Bag Face Width(mm) | 220-540 220-540(★) | 220-540 220-540(★) |
| Bag Bottom Size(mm) | 80-230 | 100-280 |
| Handle Rope Height (A)(mm) | 115/125/140/150 | 115/125/140/150 |
| Handle Patching Length (C)(mm) | 190.5 | 190.5 |
| Handle Patching Width (B)(mm) | 40-50 | 40-50 |
| Rope Pitch (D)(mm) | 95 | 95 |
| Handle Rope Diameter(mm) | Φ3-4.5 | Φ3-4.5 |
| Handle Paper Patch Roll Diameter(mm) | Φ1200 | Φ1200 |
| Handle Paper Patch Roll Width(mm) | 80-100 | 80-100 |
| Handle Paper Patch Thickness(gsm) | 90-135 | 90-135 |
| Max. Speed (bags/min) | 120 | 120 |
| Total Power (kw) | 37.2 | 37.2 |
| Machine Weight (kg) | about 20500 | about 20500 |
| Machine Size((LxWxH)m) | 16.2x6x3.4 | 16.2x6x3.4 |
| Three Types Bottom Seal | in(One) | in(One) |
| Servo Lip Cut Device | no | no |
| 1-4 Colors Flexo Printer Unit | in | in |
| Servo Patch Unit | in | in |
