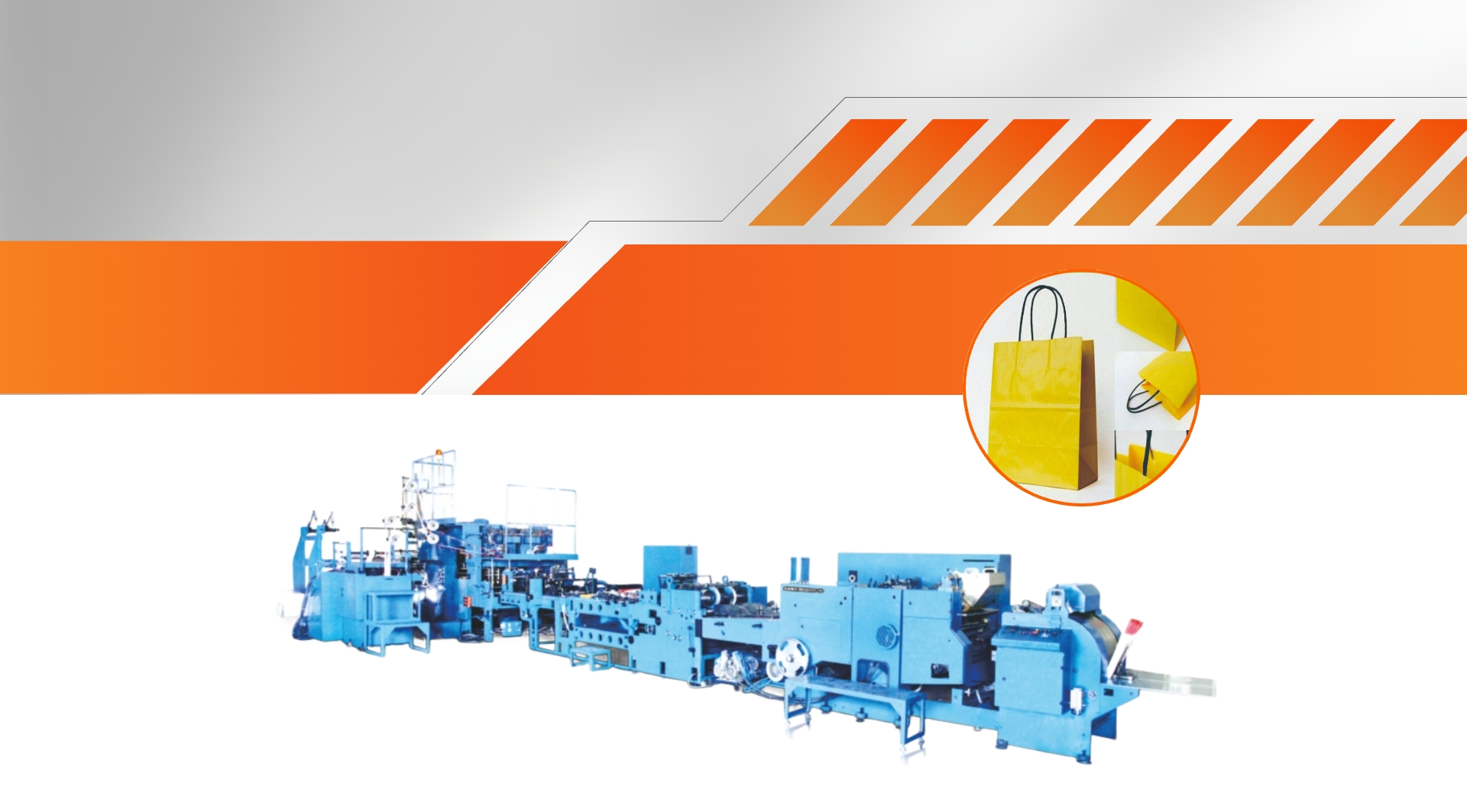

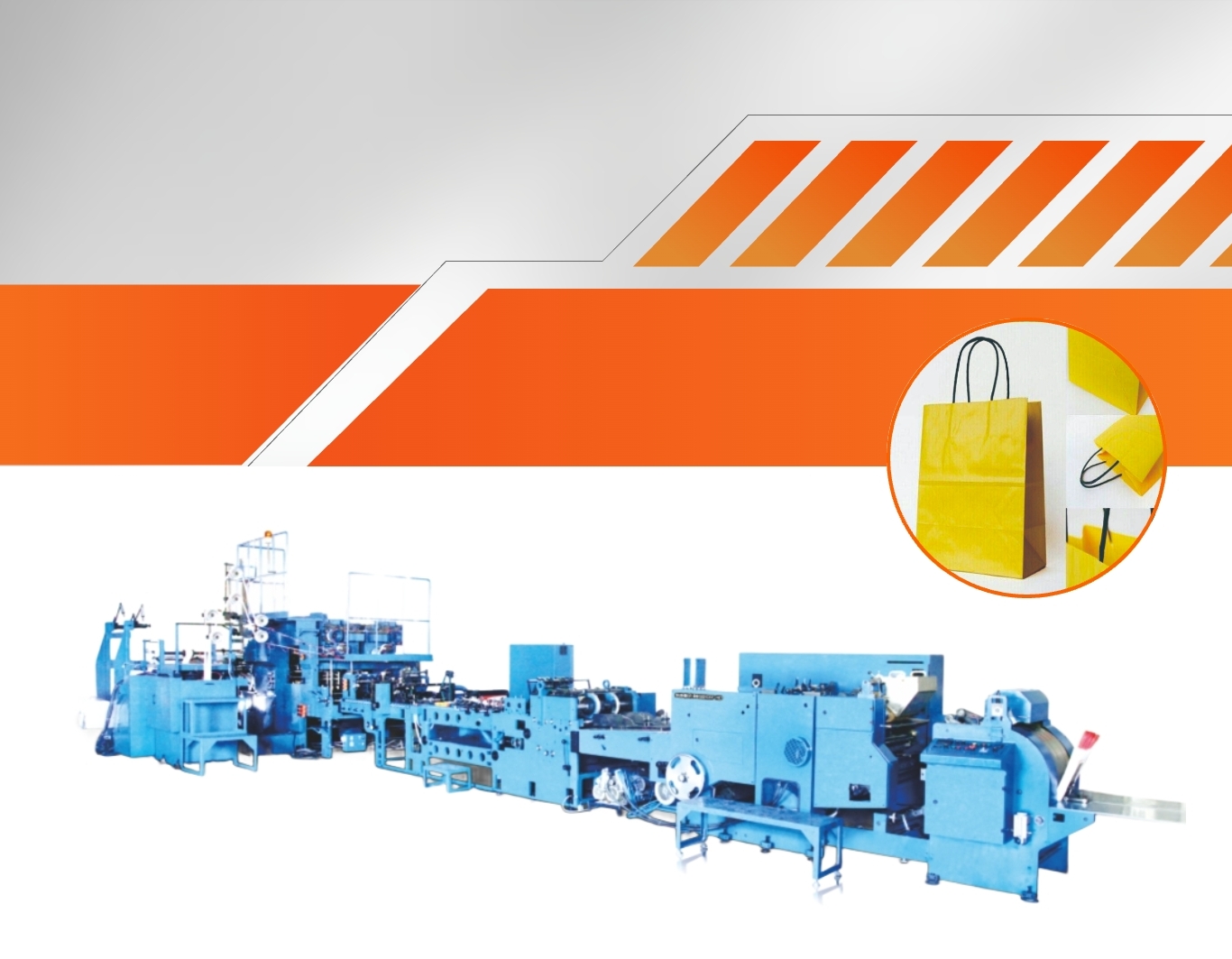

SBH35F-HD Fully Auto Sheet-Fed Square Bottom Paper Bag Machine Series
| Technical Info | SBH35F-HD | SBH45F-HD | SBH35F | SBH45F |
|---|---|---|---|---|
| Sheet Width(mm) | 510-1050 | 610-1260 | 530-1050 | 610-1260 |
| Sheet Length(mm) | 340-600 | 380-620 | 350-600 | 380-620 |
| Paper Thickness(gsm) | 100-190 | 100-200 | 90-190 | 100-200 |

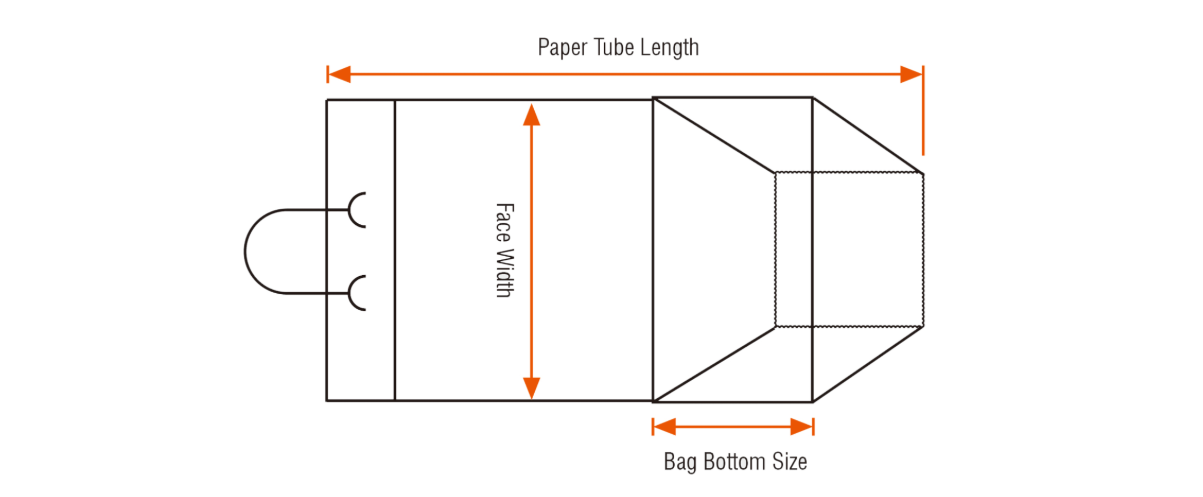

| Bag Face Width(mm) | 180-350 | 220-450 | 180-350 | 220-450 |
| Tube Length(mm) | 280-540 | 300-560 | 280-540 | 300-560 |
| Bag Bottom Size (mm) | 70-150 | 70-170 | 70-160 | 70-170 |
| Bag Mouth Fold Width(mm) | 40-60 | 40-60 | / | / |
| Handle Paper Cut Length (mm) | 152.4 | 188.4 | / | / |
| Handle Paper Width(mm) | 90-100 | 90-100 | / | / |
| String Height (mm) | 170-185 | 170-185 | / | / |
| String Pitch(mm) | 76.2 | 94.2 | / | / |
| Max. Speed (bags/min) | 70 | 70 | 70 | 70 |
| Total Power (kw) | 27 | 30 | 27 | 30 |
| Machine Size((LxWxH)m) | 15x2.71x2.05 | 15x2.32x2.05 | 12.5x1.64x1.52 | 12.56x2.12x1.52 |
| Handle Making Machine((LxWxH)m) | 5.5x1.35x2.7 | 5.4x1.34x2.69 | / | / |
