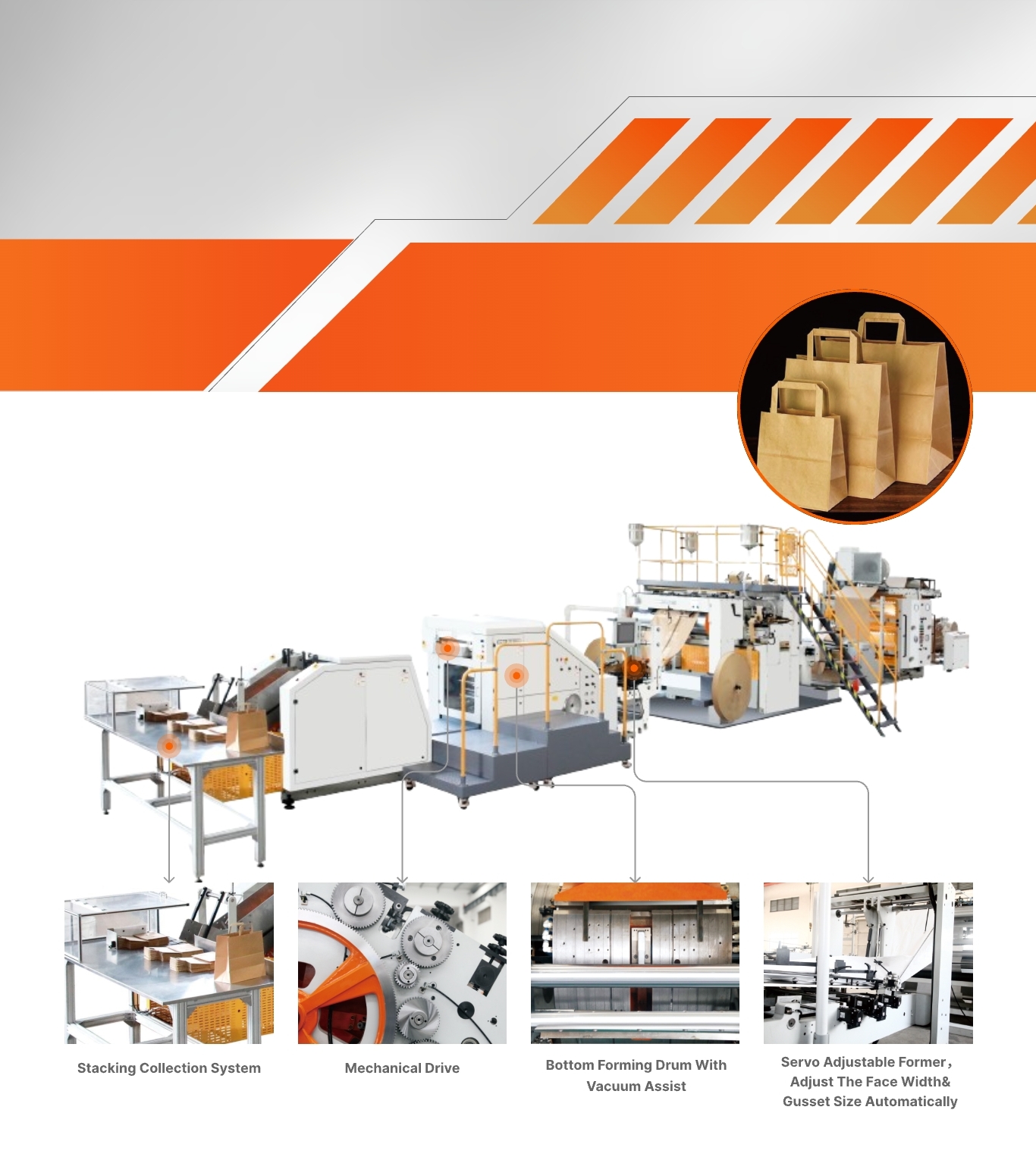

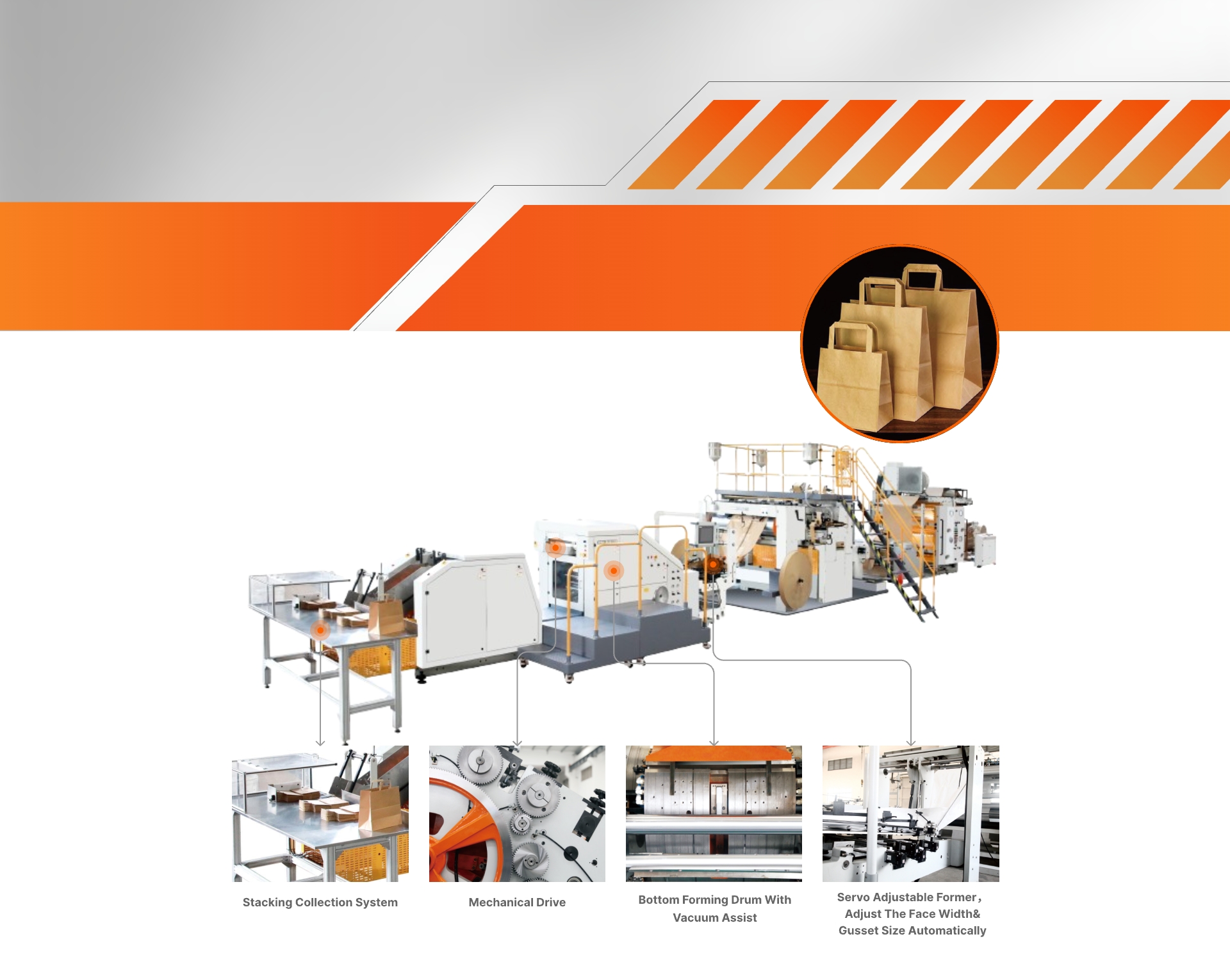

SBH330B/450B-TH Fully Automatic Roll Fed Internal Flat Handle Paper Bag Machine Series
| Technical Info | SBH330-508TH | SBH330B-508TH | SBH330BPro-508TH | SBH450B-518TH | SBH450C-518TH |
|---|---|---|---|---|---|
| Paper Roll Width(mm) | 550-1050 405-1050(★) | 550-1050 465-1050(★) | 570-1050 505-1050(★) | 690-1310 610-1310(★) | 750-1310 690-1310(★) |
| Paper Roll Dia.(mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 |
| Paper Thickness(gsm) | 45-180 | 50-180 | 50-180 | 70-180 | 70-180 |
| Tube Cut Off Length (mm) | 280-540 | 280-540 | 280-540 | 368-762 | 368-762 |
| Bag Face Width(mm) | 180-330/190-330 120-330(★) | 180-330/190-330 150-330(★) | 180-330/190-330 150-330(★) | 240-450 200-450(★) | 240-450 210-450(★) |
| Bag Bottom Size(mm) | 70-150 | 70-180 | 90-180 | 90-205 | 120-260 |
| Flat Handle Height(A)(mm) | 75 | 75 | 75 | 100 | 100 |
| Handle Patching Width (B)(mm) | 52 | 52 | 51 | 52 | 52 |
| Handle Patching Length(C(mm) | 160 | 160 | 160 | 170 | 170 |
| Internal Flat Handle Pitch(D(mm) | 100 | 100 | 100 | 109 | 109 |
| Internal Flat Handle Width(E)(mm) | 12/16 | 12/16 | 12/16 | 16/12 | 16/12 |
| Internal Flat Handle Paper Roll Width (mm) | 78-85/95 | 78-85/95 | 78-85/95 | 95 | 95 |
| Internal Flat Handle Paper Thickness(gsm) | 70-80 | 70-80 | 70-80 | 80-100 | 80-100 |
| Internal Flat Handle Paper Roll Diameter(mm) | 1200 | 1200 | 1200 | 1200 | 1200 |
| Handle Paper Patch Roll Diameter(mm) | 1200 | 1200 | 1200 | 1200 | 1200 |
| Handle Paper Patch Roll Width(mm) | 160 | 160 | 160 | 170 | 170 |
| Handle Paper Patch Thickness(gsm) | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 |
| Max. Speed (bags/min) | 150 | 150 | 150 | 130 | 130 |
| Total Power (kW) | 29.6 | 32 | 32 | 31 | 31 |
| Machine Weight (kg) | 23000 | 23000 | 23000 | 25000 | 25000 |
| Machine Size((LxWxH)m) | 14.85x4.2x2.8 | 14.85x4.2x2.8 | 14.85x4.2x2.8 | 16.1x4.5x2.8 | 16.1x4.5x2.8 |
| Three Types Bottom Seal | in | in | in | in(Two) | in(Two) |
| Servo Lip Cut Device | in | in | in | Option | Option |
| 1-4 Colors Flexo Printer Unit | yes | yes | yes | yes | yes |
| Servo Patch Unit | yes | yes | yes | yes | yes |
| DL02 Two Ply Unit | yes | yes | yes | yes | yes |
