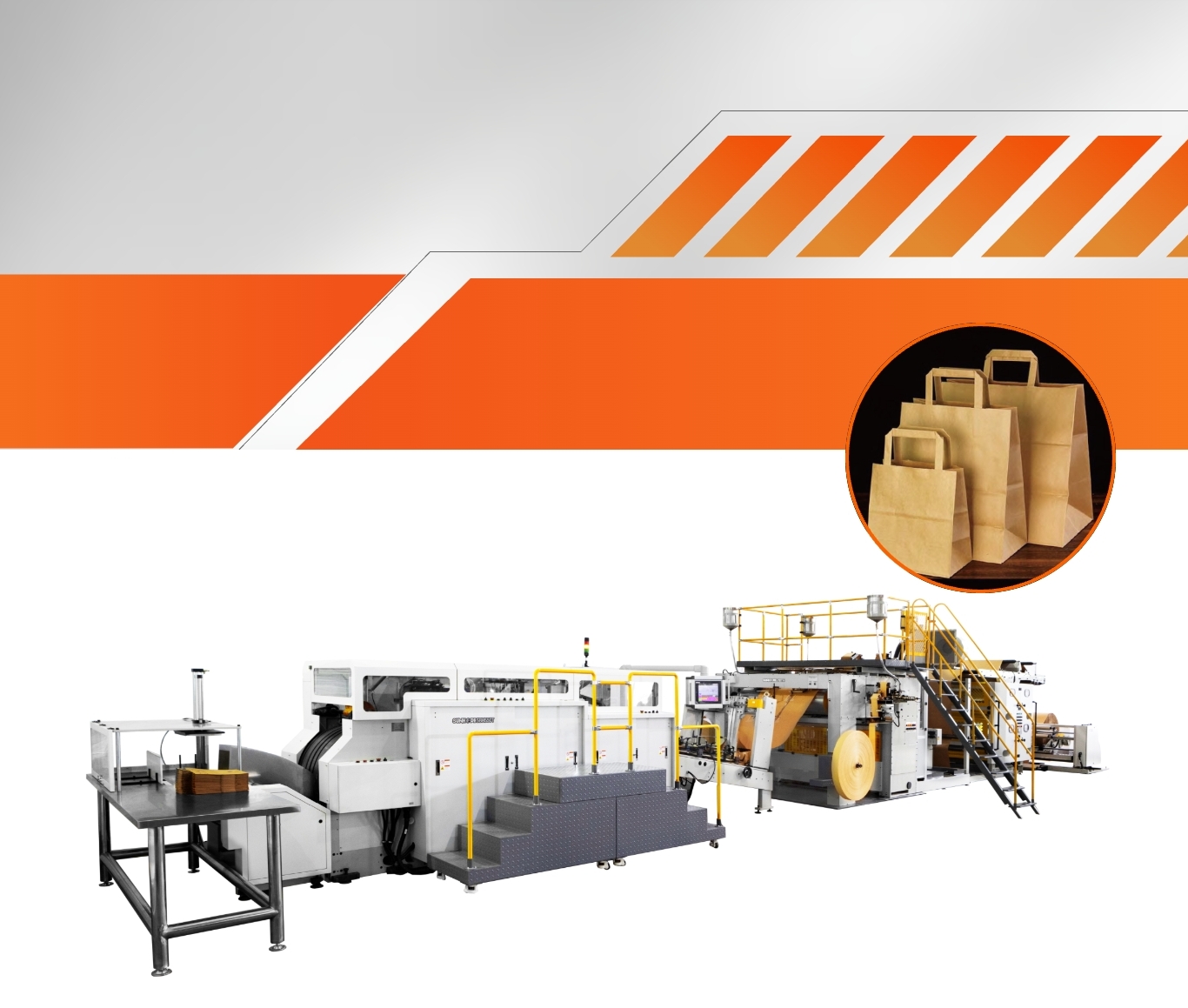

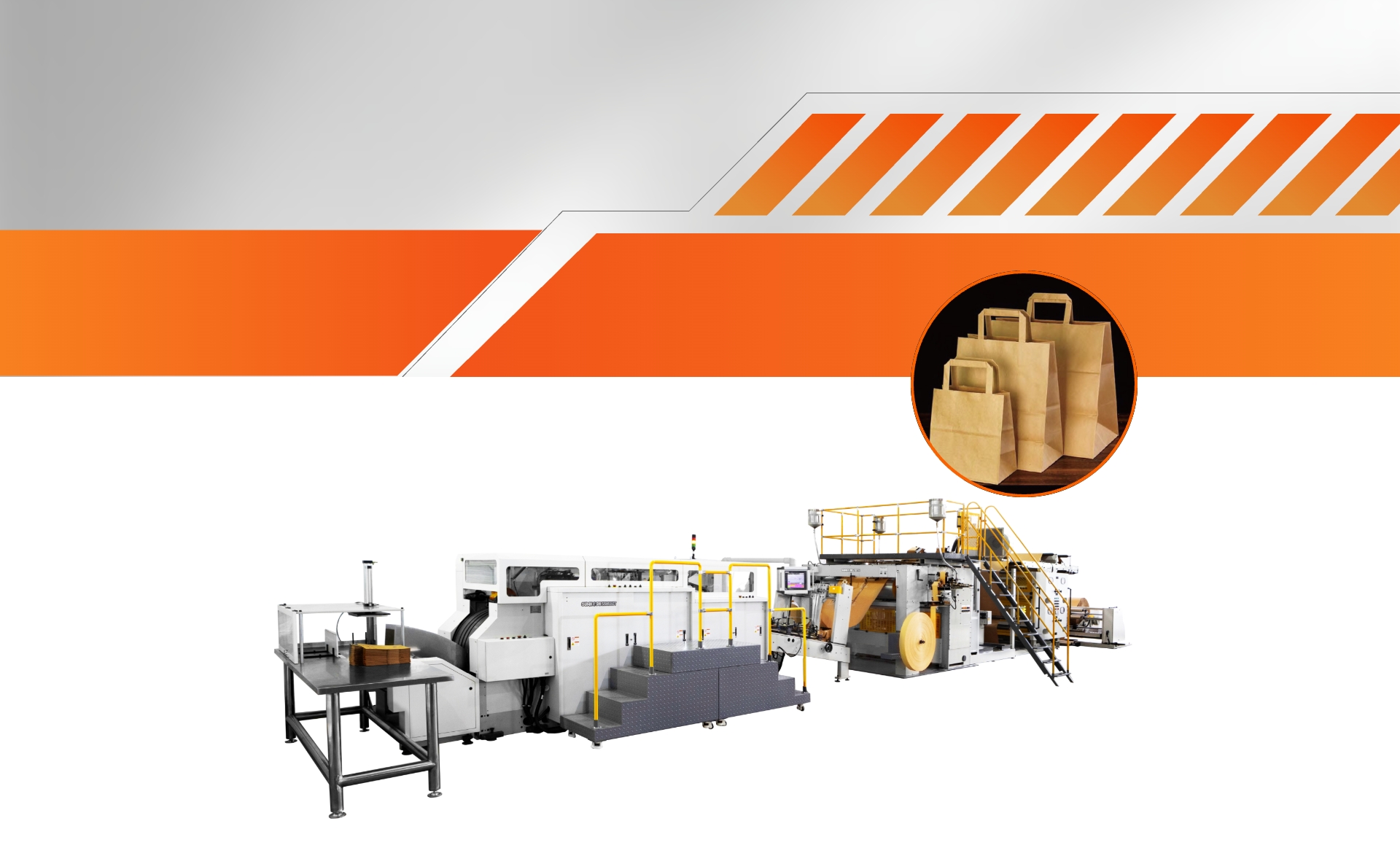

SBH550T/SBH550TB-518TH Fully Automatic Roll Fed Internal Flat Handle Paper Bag Machine Series
| Technical Info | SBH550T-518TH | SBH550TB-518TH |
|---|---|---|
| Paper Roll Width(mm) | 670-1510 630-1510(★) | 710-1510 670-1510(★) |
| Paper Roll Dia.(mm) | ≤1500 | ≤1500 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 |
| Paper Thickness(gsm) | 80-150 | 80-150 |

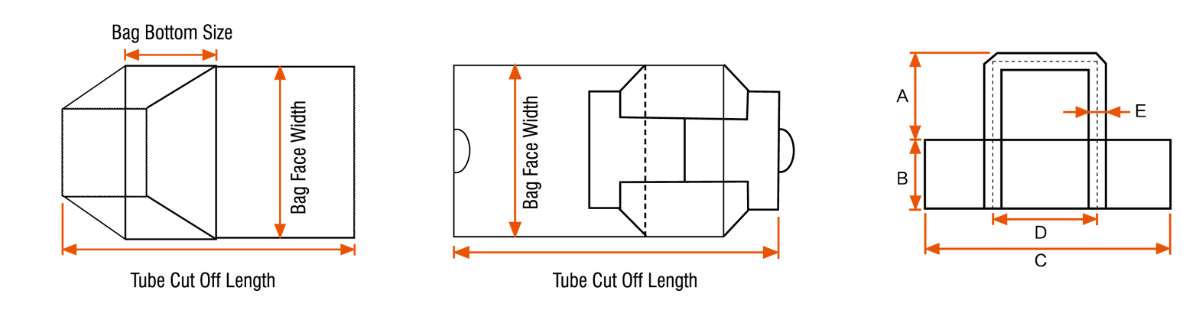

| Tube Cut Off Length (mm) | 360-770 | 360-770 |
| Bag Face Width(mm) | 220-540 220-540(★) | 220-540 220-540(★) |
| Bag Bottom Size(mm) | 80-230 | 100-280 |
| Flat Handle Height(A)(mm) | 100 | 100 |
| Handle Patching Width (B)(mm) | 52 | 52 |
| Handle Patching Length(C(mm) | 170 | 170 |
| Internal Flat Handle Pitch(D(mm) | 109 | 109 |
| Internal Flat Handle Width(E)(mm) | 16 | 16 |
| Internal Flat Handle Paper Roll Width (mm) | 95 | 95 |
| Internal Flat Handle Paper Thickness(gsm) | 80-100 | 80-100 |
| Internal Flat Handle Paper Roll Diameter(mm) | 1200 | 1200 |
| Handle Paper Patch Roll Diameter(mm) | 1200 | 1200 |
| Handle Paper Patch Roll Width(mm) | 170 | 170 |
| Handle Paper Patch Thickness(gsm) | 80-100 | 80-100 |
| Max. Speed (bags/min) | 130 | 130 |
| Total Power (kW) | 36.3 | 36.3 |
| Machine Weight (kg) | 27000 | 27000 |
| Machine Size((LxWxH)m) | 18.3x5.5x2.8 | 18.3x5.5x2.8 |
| Three Types Bottom Seal | in(One) | in(One) |
| Servo Lip Cut Device | no | no |
| 1-4 Colors Flexo Printer Unit | yes | yes |
| Servo Patch Unit | yes | yes |
| DL02 TWO Ply Unit | yes | yes |
