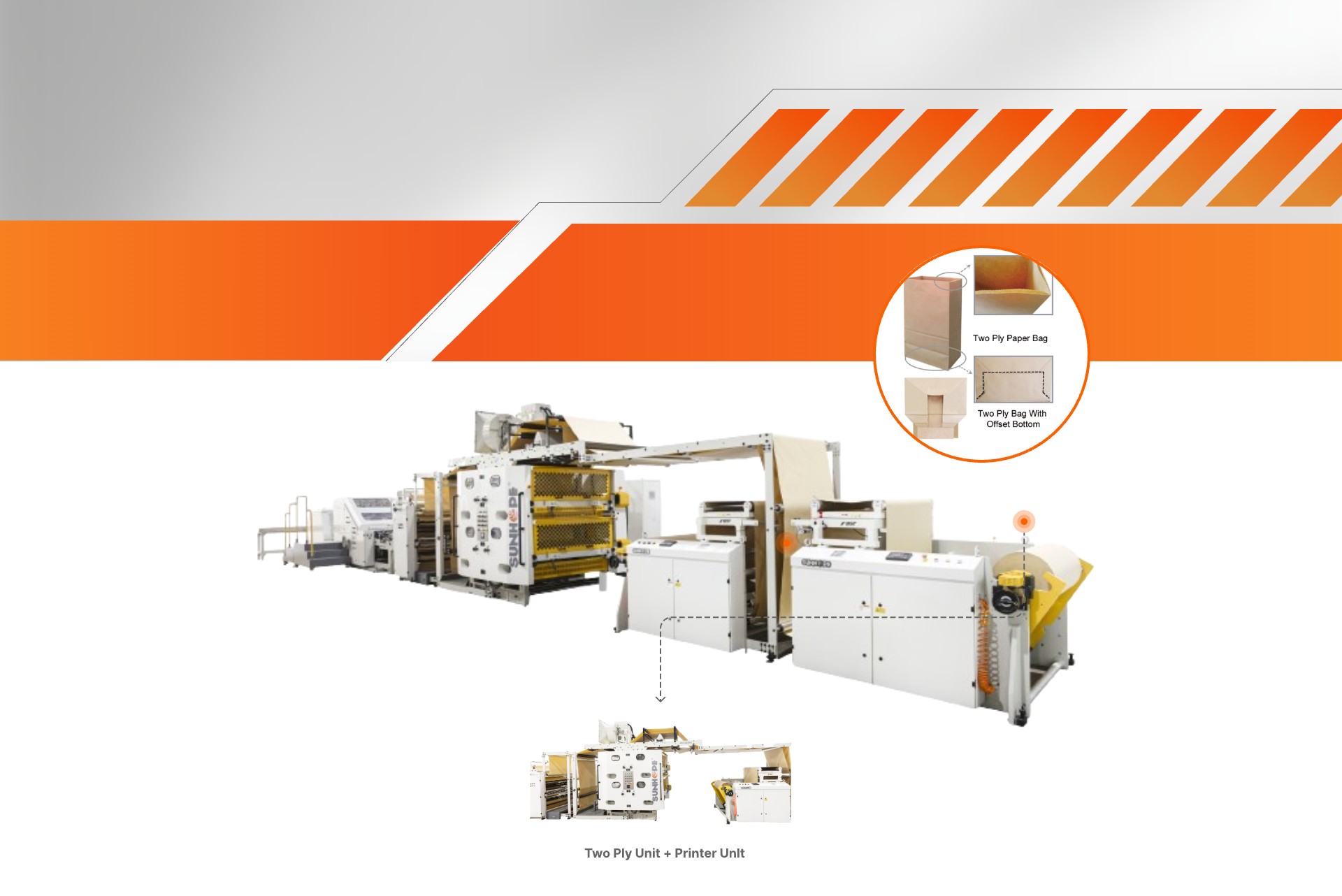

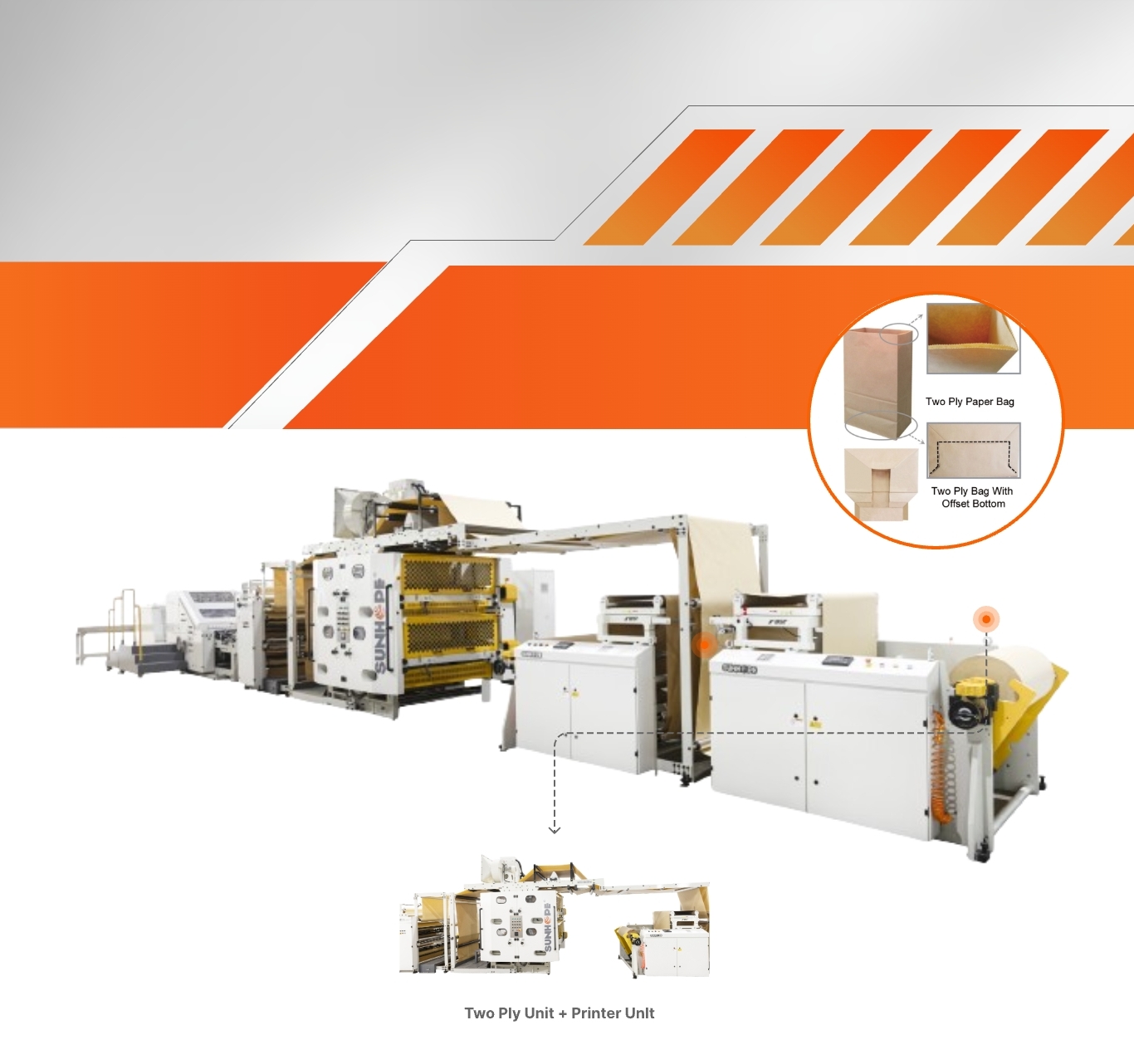

SBH330B+DL02 Roll Fed Square Bottom Paper Bag Machine (Two Ply Unit) Series
| Technical Info | SBH150+DL01 | SBH150B+DL01 | SBH330+DL02 | SBH330B+DL02 | SBH450B+DL03 | SBH450C+DL03 |
|---|---|---|---|---|---|---|
| Paper Roll Width(mm) | 280-640 | 280-640 | 405-1050 | 465-1050 | 610-1310 | 690-1310 |
| Paper Roll Dia.(mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 |
| Paper Thickness(gsm) | 40-150 | 40-150 | 45-180 | 50-180 | 70-180 | 70-180 |
| Tube Cut Off Length (mm) | 191-385 | 191-430 | 280-540 | 280-540 | 368-762 | 368-762 |
| Bag Face Width(mm) | 80-200 | 80-200 | 120-330 | 150-330 | 200-450 | 200-450 |
| Bag Bottom Size(mm) | 50-100 | 45-100 | 70-150 | 70-180 | 90-205 | 120-260 |
| Max. Speed (bags/min) | 250 | 250 | 230 | 220 | 160 | 160 |
| Total Power (kW) | 15.75 | 15.25 | 21.5 | 21.5 | 25.8 | 25.8 |
| Machine Weight (kg) | about 8600 | about 8600 | about 11500 | about 12000 | about 14000 | about 14000 |
| Machine Size((LxWxH)m) | 14.6x2.6x1.96 | 14.6x2.6x1.96 | 17.5x3.1x1.96 | 17.5x3.1x1.96 | 19x3.9x2 | 19x3.9x2 |
| Three Types Bottom Seal | in | in | in | in | in(Two) | in(Two) |
| Servo Lip Cut Device | in | in | in | in | no | no |
