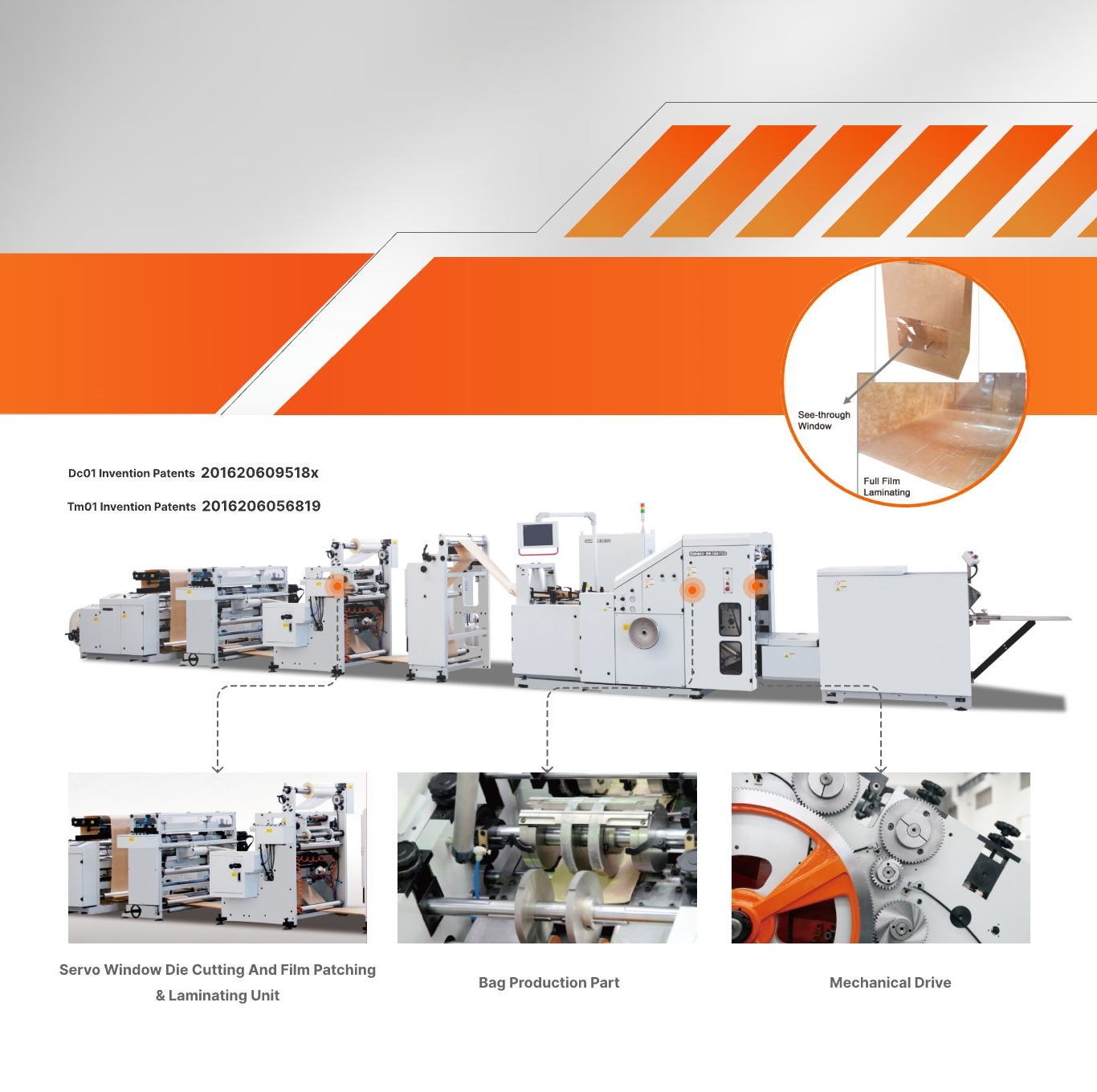

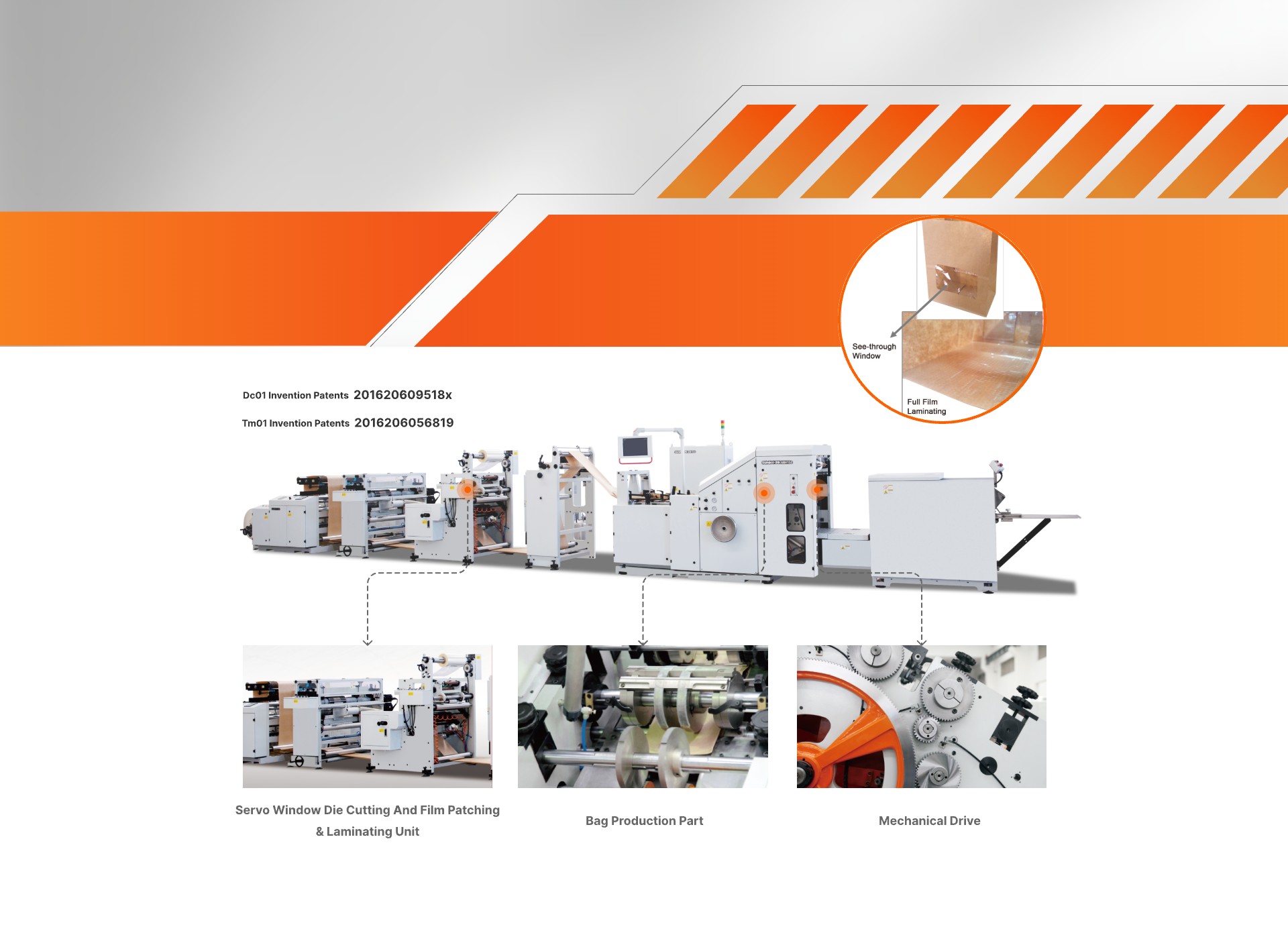

SBH150B+DC01+TM01 Roll Fed Square Bottom Paper Bag Machine (Window Die Cutting & Film Patching) Series
| Technical Info | SBH150+DC01+TM01 | SBH150B+DC01+TM01 | SBH330+DC02+TM02 | SBH330B+DC02+TM02 |
|---|---|---|---|---|
| Paper Roll Width(mm) | 280-640 | 280-640 | 405-1050 | 465-1050 |
| Paper Roll Dia.(mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 | Φ76 | Φ76 |
| Paper Thickness(gsm) | 40-150 | 40-150 | 45-180 | 50-180 |
| Tube Cut Off Length (mm) | 191-385 | 191-430 | 280-540 | 280-540 |
| Bag Face Width(mm) | 80-200 | 80-200 | 120-330 | 150-330 |
| Bag Bottom Size(mm) | 50-100 | 45-100 | 70-150 | 70-180 |
| Window Die Cutting Range(Length)(mm) | 20-120 | 20-120 | 20-120 | 20-120 |
| Window DieCutting Range(Width)(mm) | 20-145 | 20-145 | 20-145 | 20-145 |
| Window Patching Range(Length)(mm) | 40-210 | 40-210 | 40-210 | 40-210 |
| Window Patching Range (Width)(mm) | 25-180 | 25-180 | 25-180 | 25-180 |
| Max.die Diameter (mm) | Φ400 | Φ400 | Φ400 | Φ400 |
| Inner Diameter (mm) | Φ75 | Φ75 | Φ75 | Φ75 |
| Film Laminating Width(mm) | 40-640 | 40-640 | 40-1000 | 40-1000 |
| Max.Two Layer Paper Weight(gsm) | 135 | 135 | 135 | 135 |
| Max. Speed (bags/min) | 250 | 250 | 230 | 220 |
| Bag Machine Total Power (kW) | 8.75 | 8.75 | 14.75 | 14.75 |
| DC+TM Power (kw) | 14.8 | 14.8 | 14.8 | 14.8 |
| Machine Weight (kg) | About 7500 | About 7500 | about 11000 | about 11000 |
| Machine Size((LxWxH)m) | 11.52x2.6x1.96 | 11.52x2.6x1.96 | 14.5x3.1x1.96 | 15x3.1x1.96 |
| Three Types Bottom Seal | in | in | in | in |
| Servo Lip Cut Device | in | in | in | in |
| Serrated & Straight Cut Device | in | in | Option | Option |
