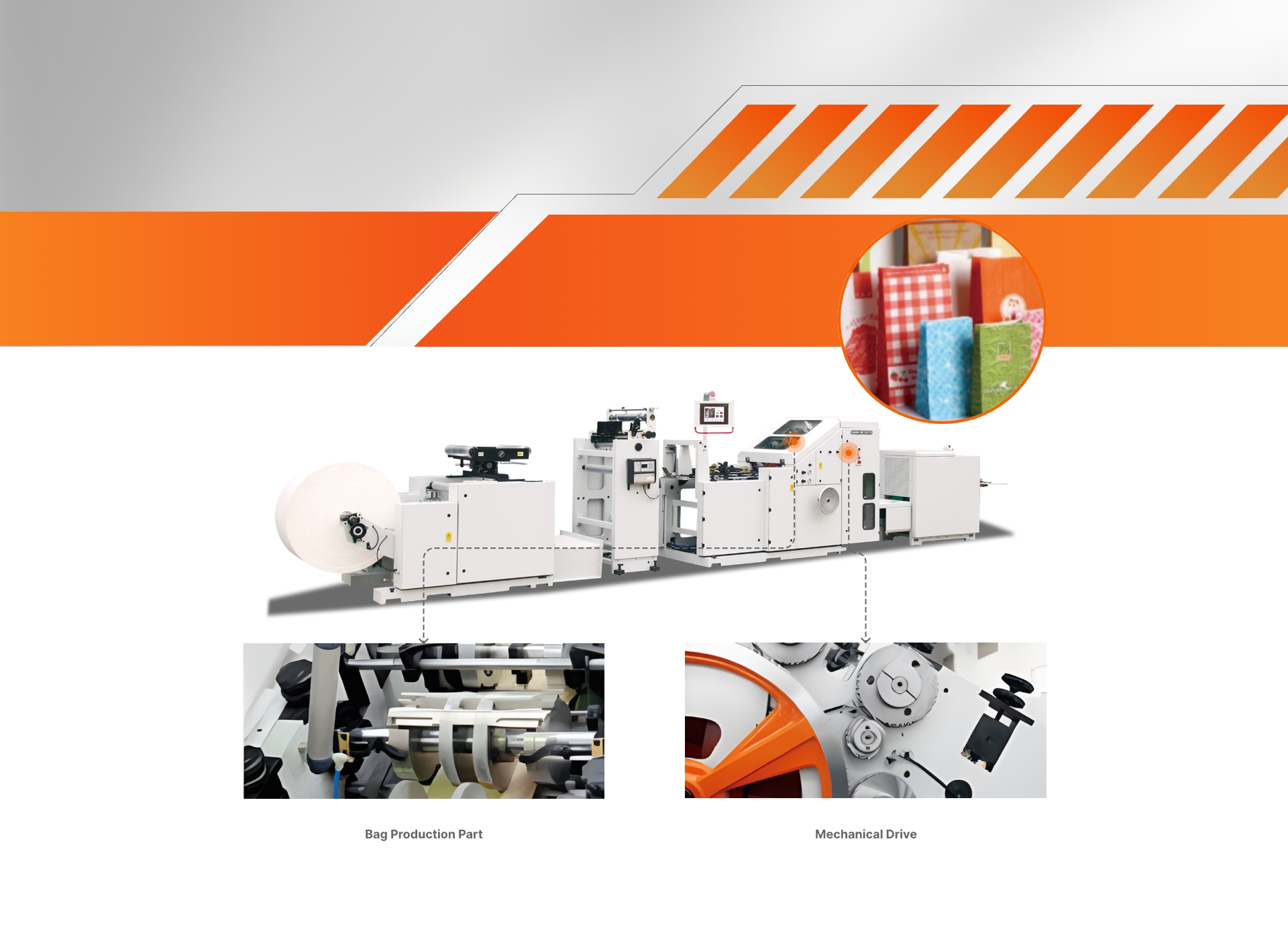

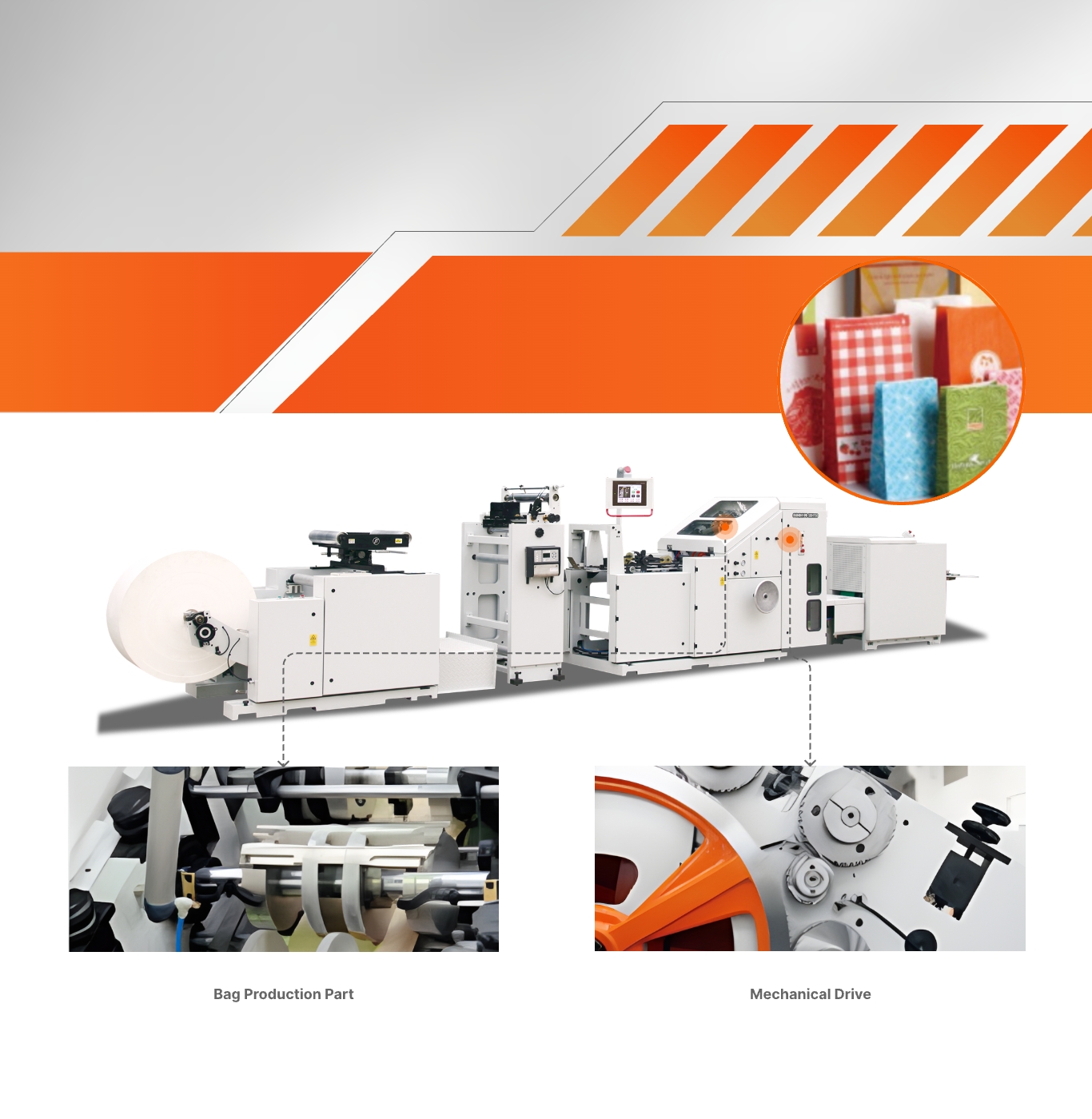

SBH150B/330 Roll Fed Square Bottom Paper Bag Machine Series
| Technical Info | SBH150 | SBH150B | SBH330 | SBH330B | SBH330BPro | SBH450B | SBH450C |
|---|---|---|---|---|---|---|---|
| Paper Roll Width(mm) | 280-640 | 280-640 | 405-1050 | 465-1050 | 505-1050 | 610-1310 | 690-1310 |
| Paper Roll Dia.(mm) | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 | ≤1500 |
| Paper Roll Core Dia.(mm) | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 | Φ76 |
| Paper Thickness(gsm) | 40-150 | 40-150 | 45-180 | 50-180 | 50-180 | 70-180 | 70-180 |

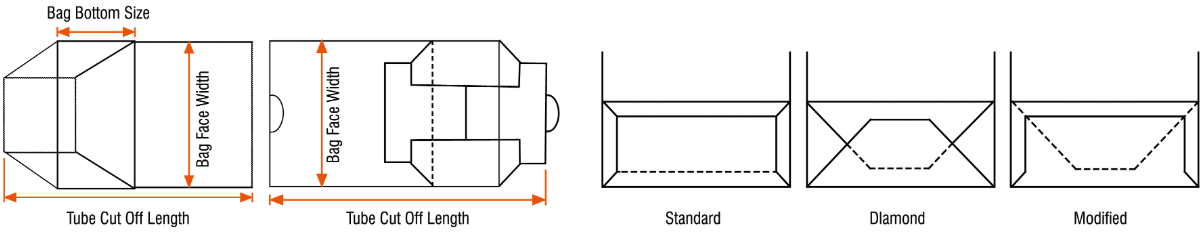

| Tube Cut Off Length (mm) | 191-385 | 191-430 | 280-540 | 280-540 | 280-540 | 368-762 | 368-762 |
| Bag Face Width(mm) | 80-200 | 80-200 | 120-330 | 150-330 | 150-330 | 200-450 | 200-450 |
| Bag Bottom Size(mm) | 50-100 | 45-100 | 70-150 | 70-180 | 90-180 | 90-205 | 120-260 |
| Max. Speed (bags/min) | 250 | 250 | 230 | 220 | 220 | 150 | 150 |
| Total Power(kW) | 8.75 | 8.75 | 16.5 | 18.9 | 18.9 | 17.9 | 17.9 |
| Machine Weight (kg) | about 5600 | about 6500 | about 8500 | about 9000 | about 9000 | about 11000 | about 11000 |
| Machine Size((LxWxH)m) | 8.6x2.6x1.96 | 8.6x2.6x1.96 | 11.5x3.1x1.96 | 11.5x3.1x1.96 | 11.5x3.1x1.96 | 13x3.9x2 | 13x3.9x2 |
| Three Types Bottom Seal | in | in | in | in | in | in(Two) | in(Two) |
| Servo Lip Cut Device | in | in | in | in | in | Option | Option |
| M= Servo Motorized Plate Device | no | no | Option | Option | Option | Option | Option |
| Bottom Forming Drum With Vacuum Assist | no | no | in | in | in | in | in |
| Options Unit | SBH150 | SBH150B | SBH330 | SBH330B | SBH150BPro | SBH450B | SBH450C |
| DC01/DC02 Servo Window Cutting Unit | yes | yes | yes | yes | yes | yes | yes |
| TM01/TM02 Servo Film Patching&Laminating Unit | yes | yes | yes | yes | yes | yes | yes |
| PAV02C Die Cut Handle Patch Application Unit | yes | yes | yes | yes | yes | yes | yes |
| DL01/DL02/DL03 Two Ply Unit | yes | yes | yes | yes | yes | yes | yes |
| 1-4 Colors Flexo Printing Unit | yes | yes | yes | yes | yes | yes | yes |
| Twisted Handle Making Unit | yes | yes | yes | yes | yes | yes | yes |
| Internal Flat Handle Making Unit | yes | yes | yes | yes | yes | yes | yes |
